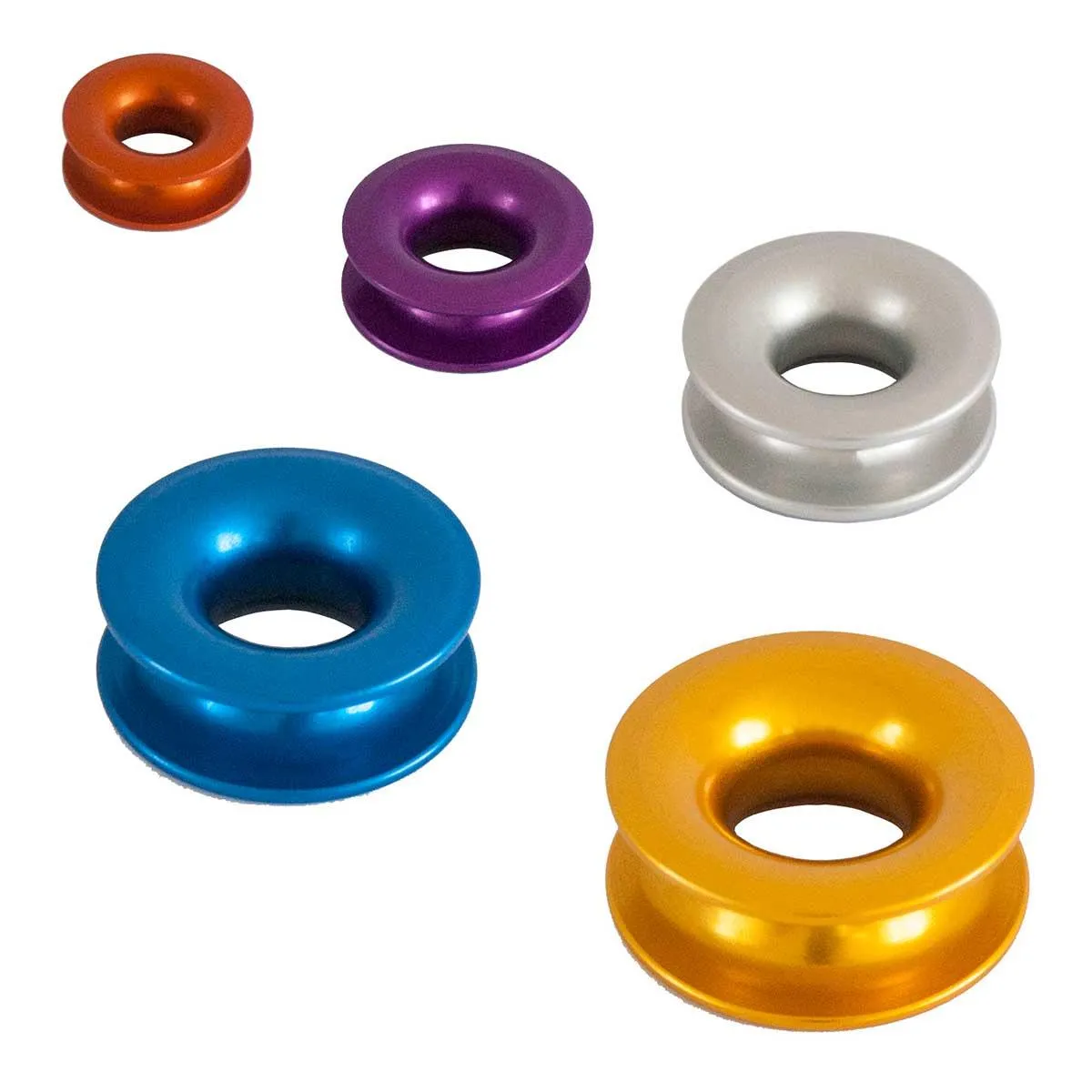

Allen Brothers 20mm High Load Thimble - Aluminium

Allen have expanded their range of high load alloy thimbles; the range is available in a series of eye catching colours and various sizes which you can splice your ropes onto.

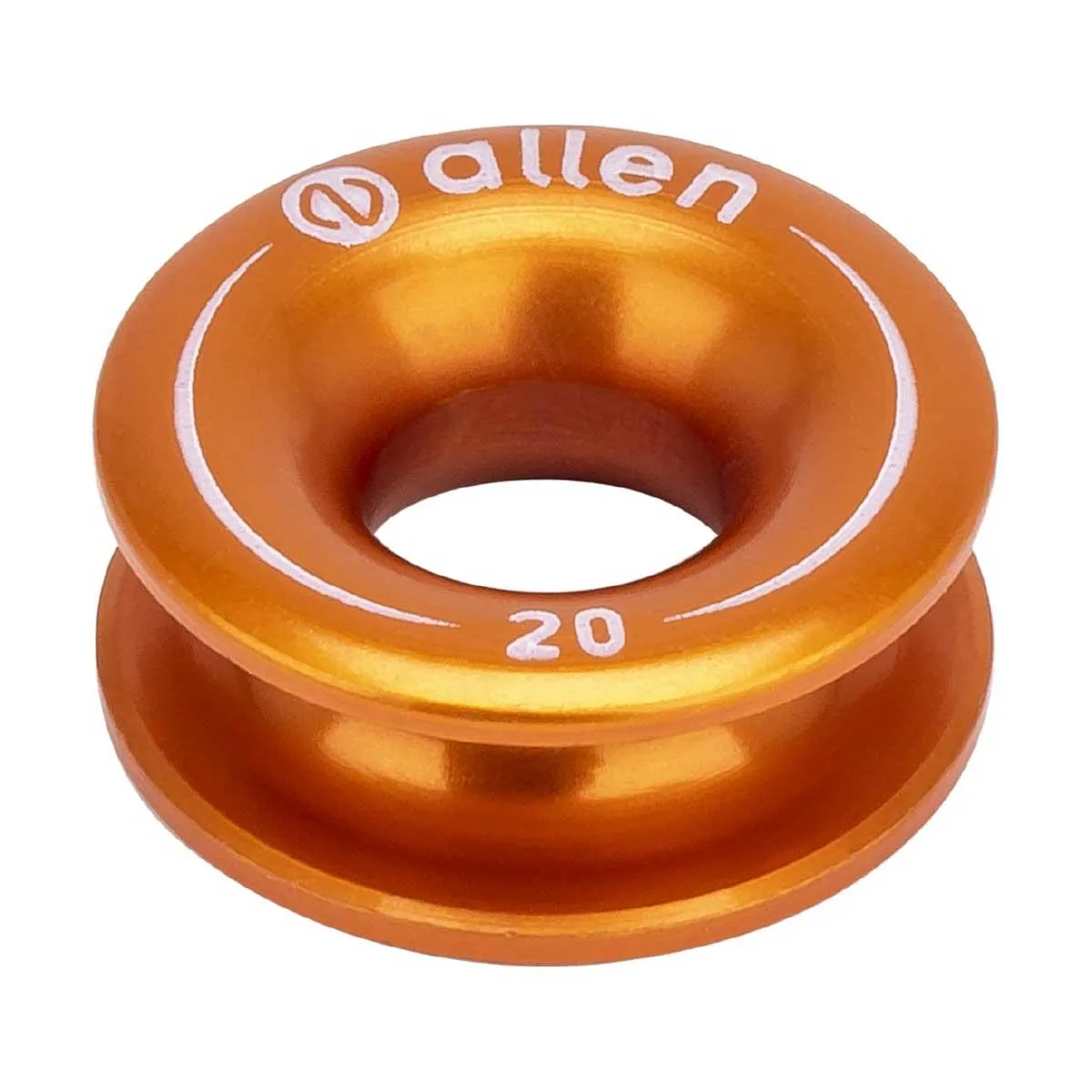

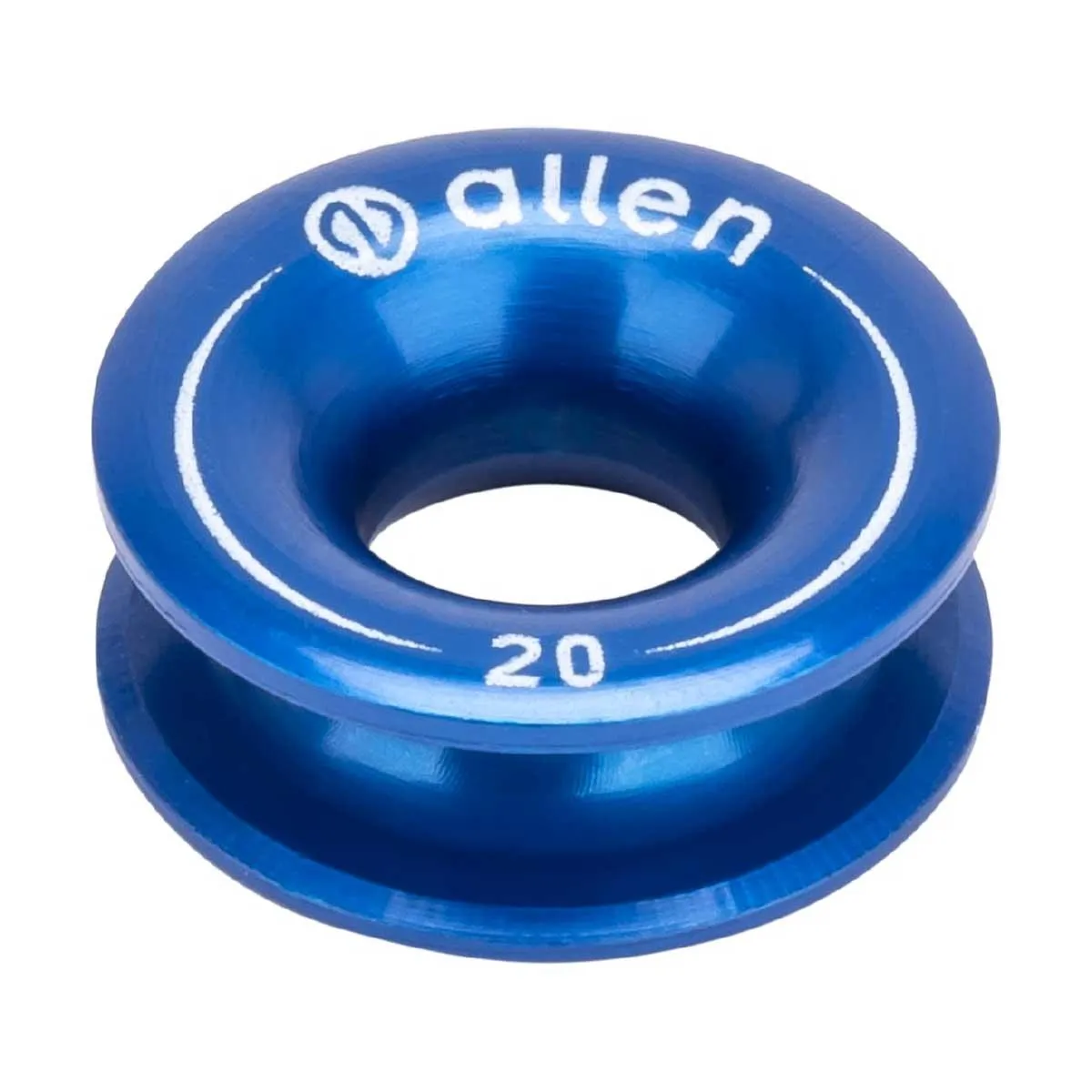

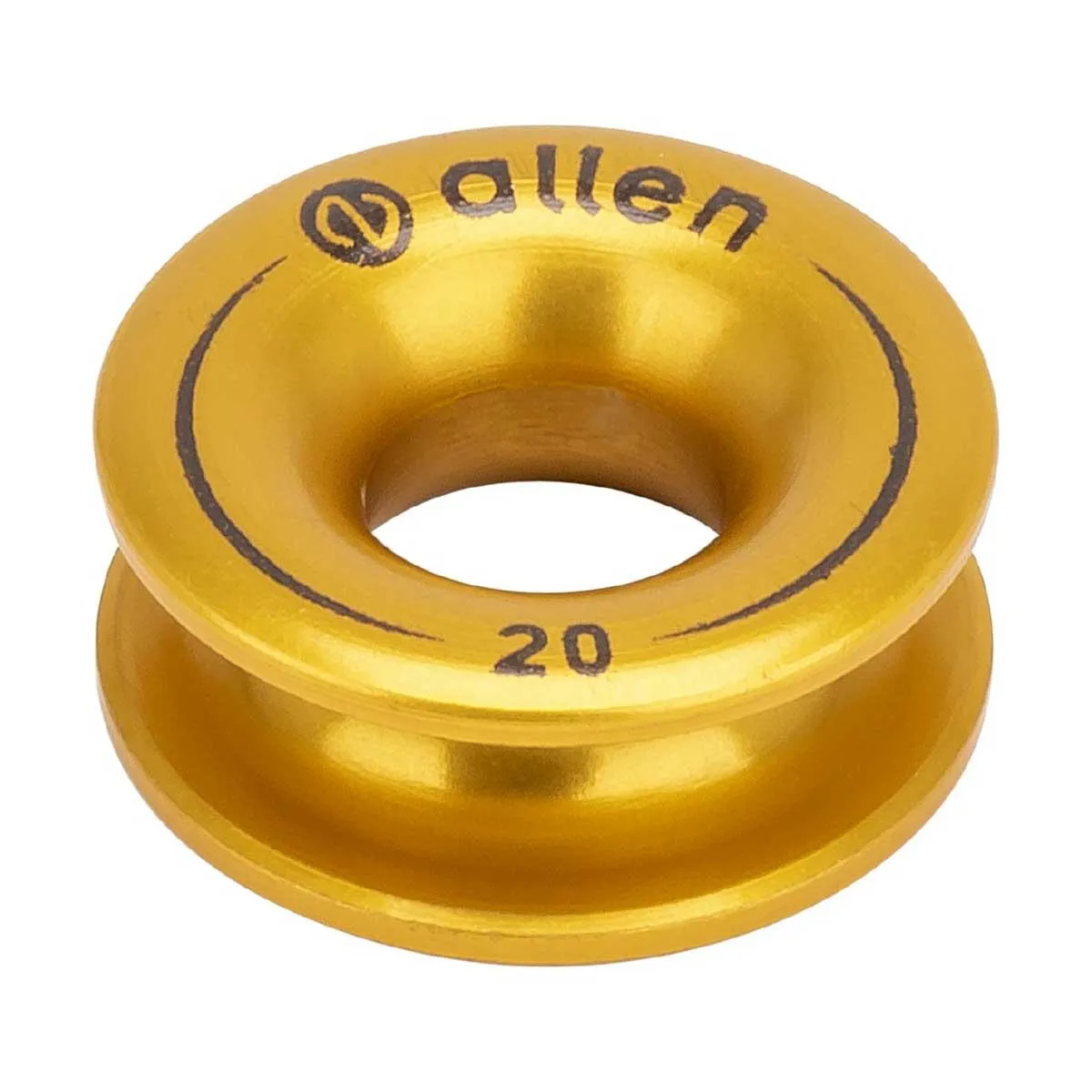

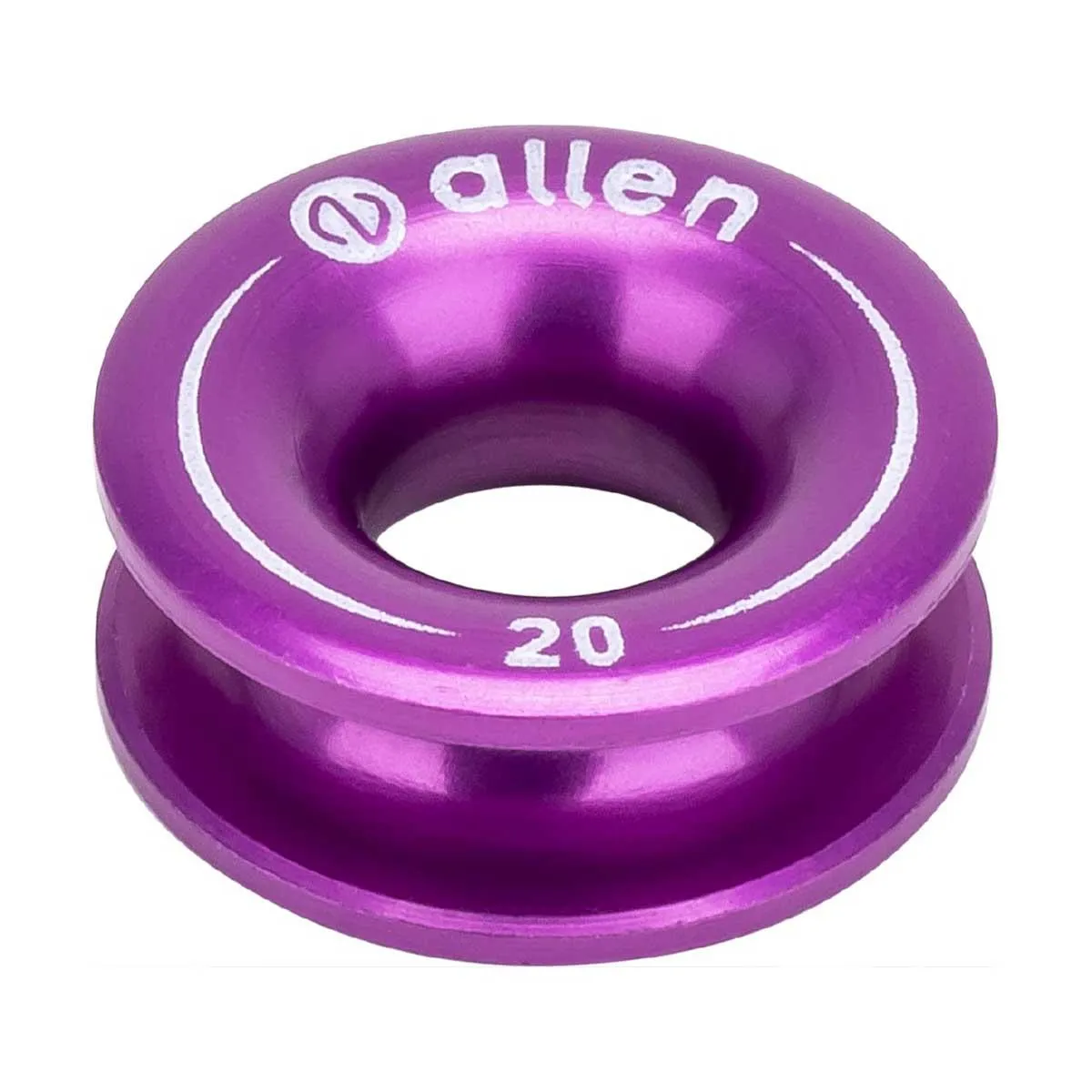

This friction ring has an outside diameter of 20mm and an internal diameter of 8mm.

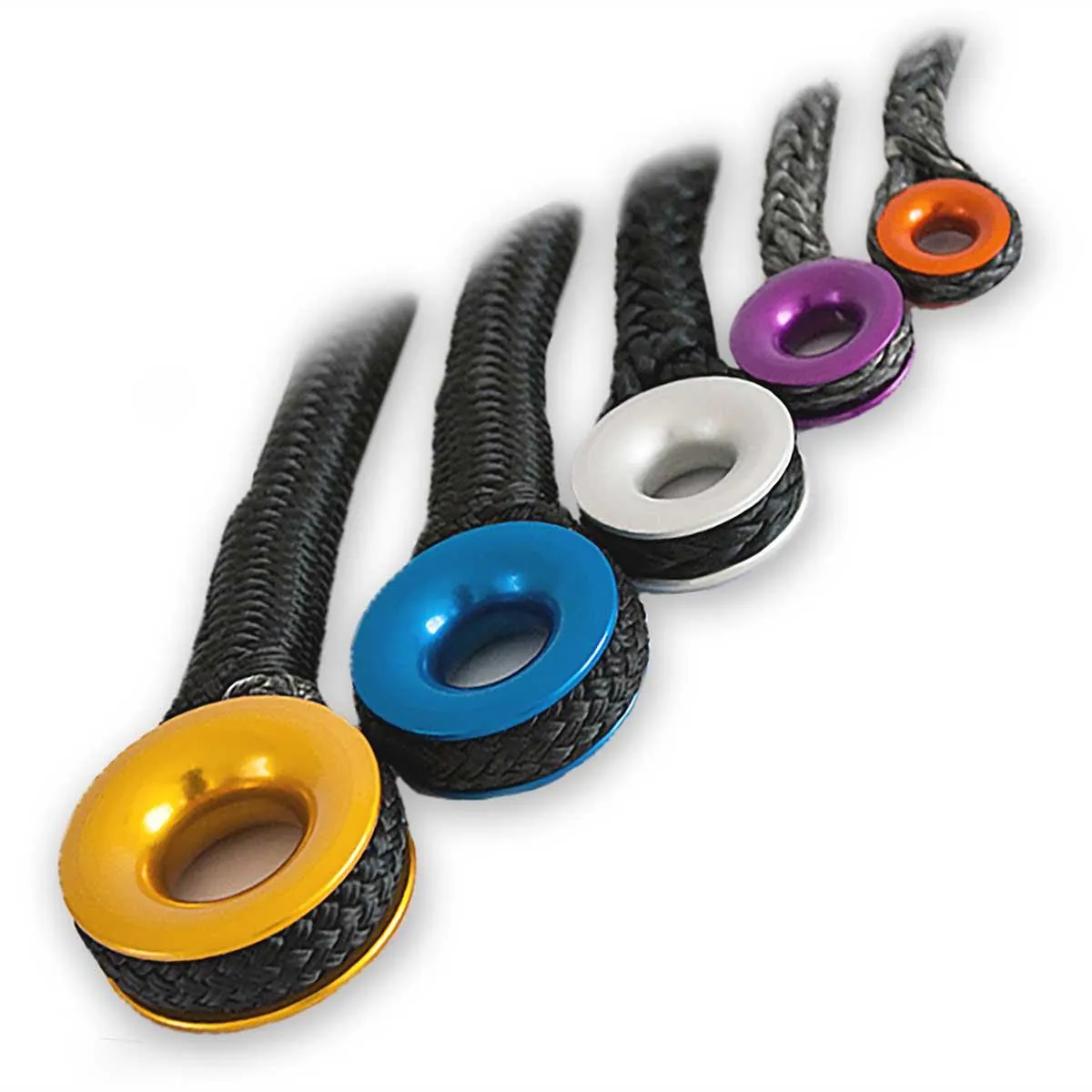

By splicing the thimble into a dyneema loop it allows far higher loads and enhanced performance.

The use of high load, low friction thimbles where blocks may have been used in the past, has simplified areas of rig tensioning such as kicker or down-haul systems.

These high load friction rings feature CNC turned 6082 aluminium, anodised, PTFE coated rings with safe working loads of between 300-1000kg.

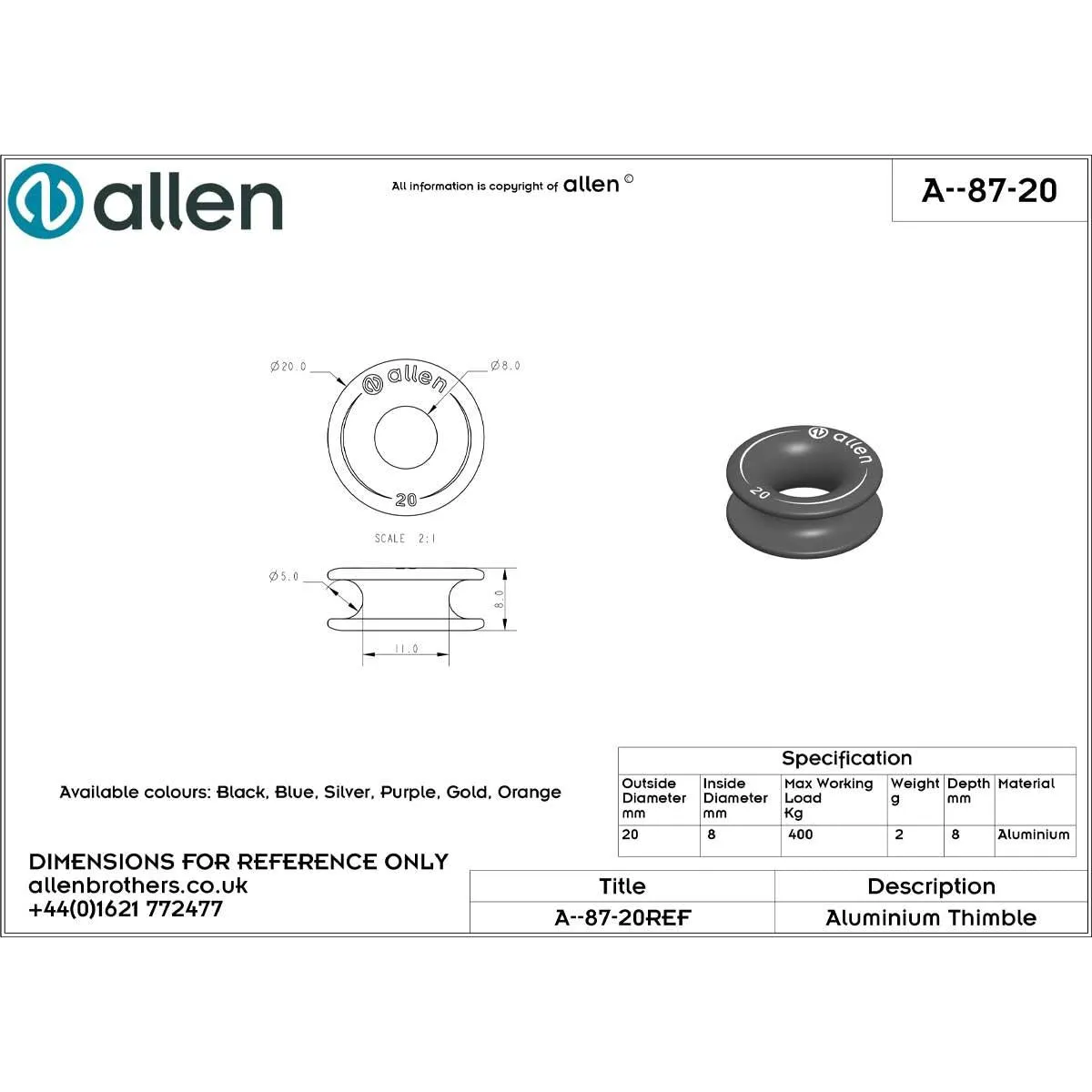

Specification

• Spliced line size - 5mm
• Internal diameter - 8mm
• Outside diameter - 20mm
• Working load - 400kgs
