Double lanyard with integrated intermediate tie-back rings and energy absorber
- Designed for progression on a vertical structure and when passing intermediate anchors

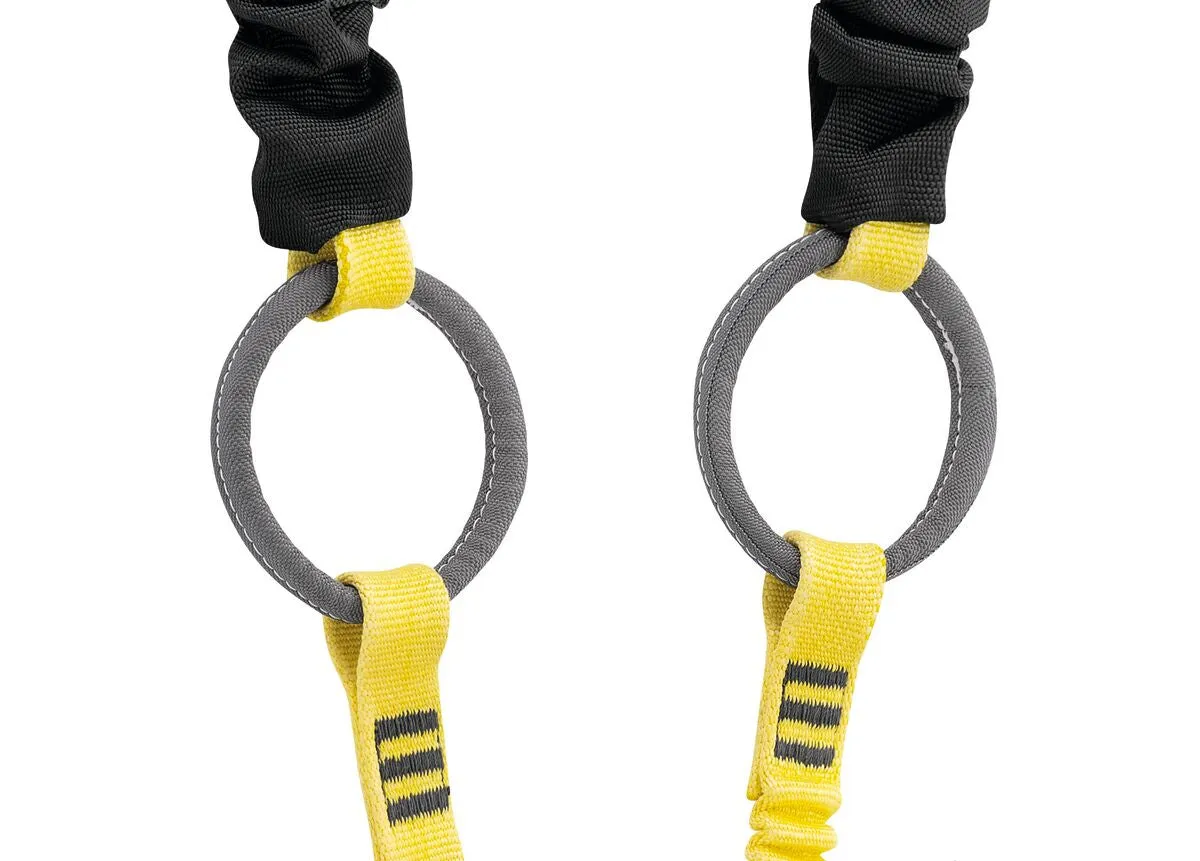

- TIE-BACK intermediate tie-back rings on the lanyard allow the user to wrap structures with very large cross sections; in a rescue situation, these rings are also easily accessible for the rescuer, even when the person is suspended on the lanyard after a fall
- Absorbs energy in the event of a fall:
- Progressive tearing of the energy absorber webbing limits the impact force on the user

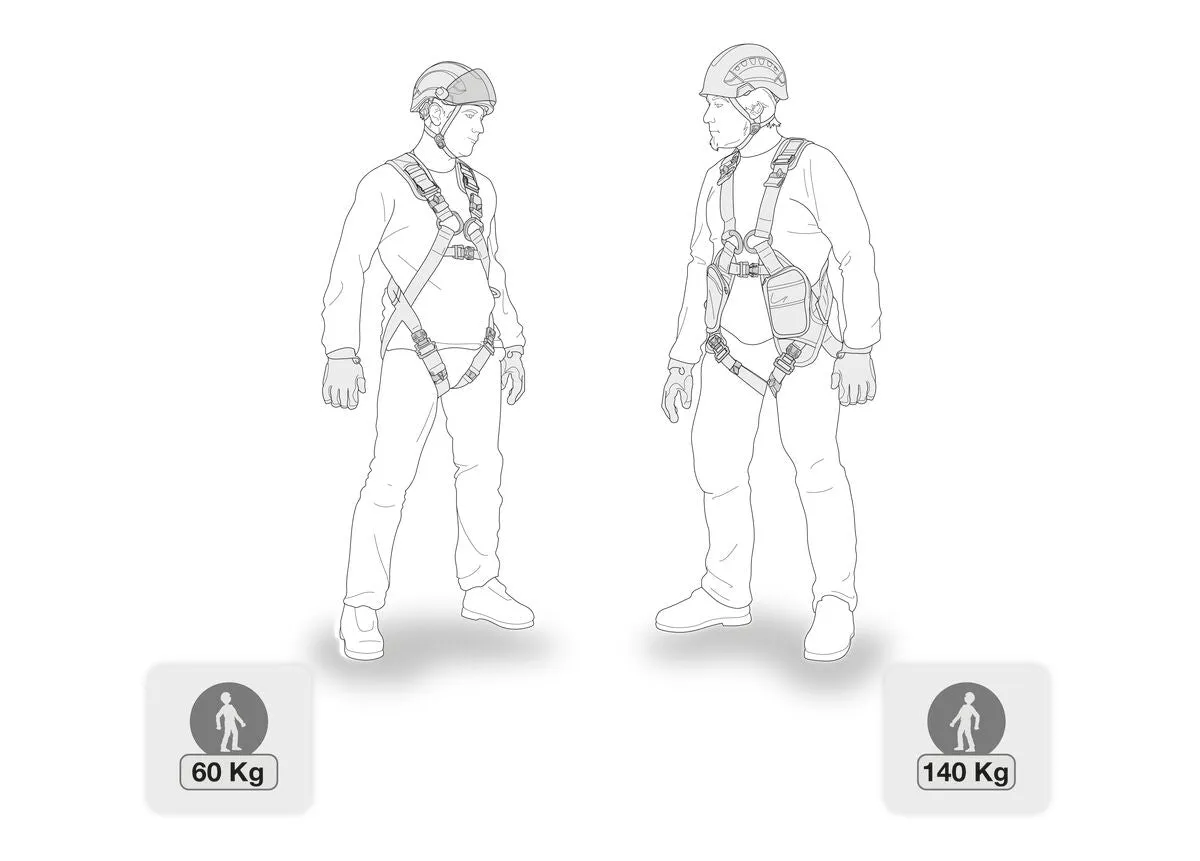

- Works with users who weigh between 60 and 140 kg (1)
- Designed for use with a maximum length (including connectors) of:
- 200 cm under the CE EN 355 standard
- 183 cm (6 feet) under the ANSI Z359.13
- Minimal bulk:
- Energy absorber’s very compact design doesn’t hinder the user during progression

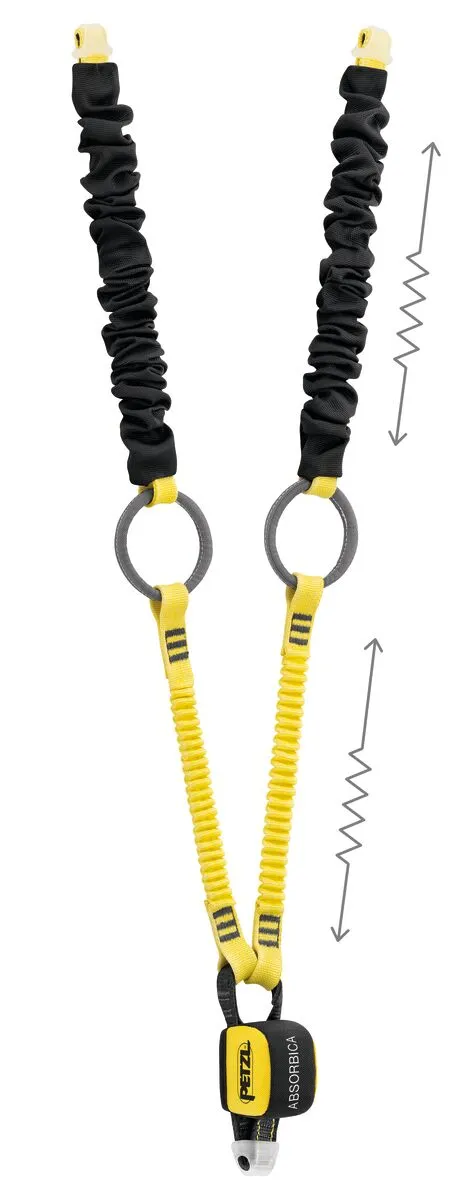

- Elasticized arms to avoid hindering progression

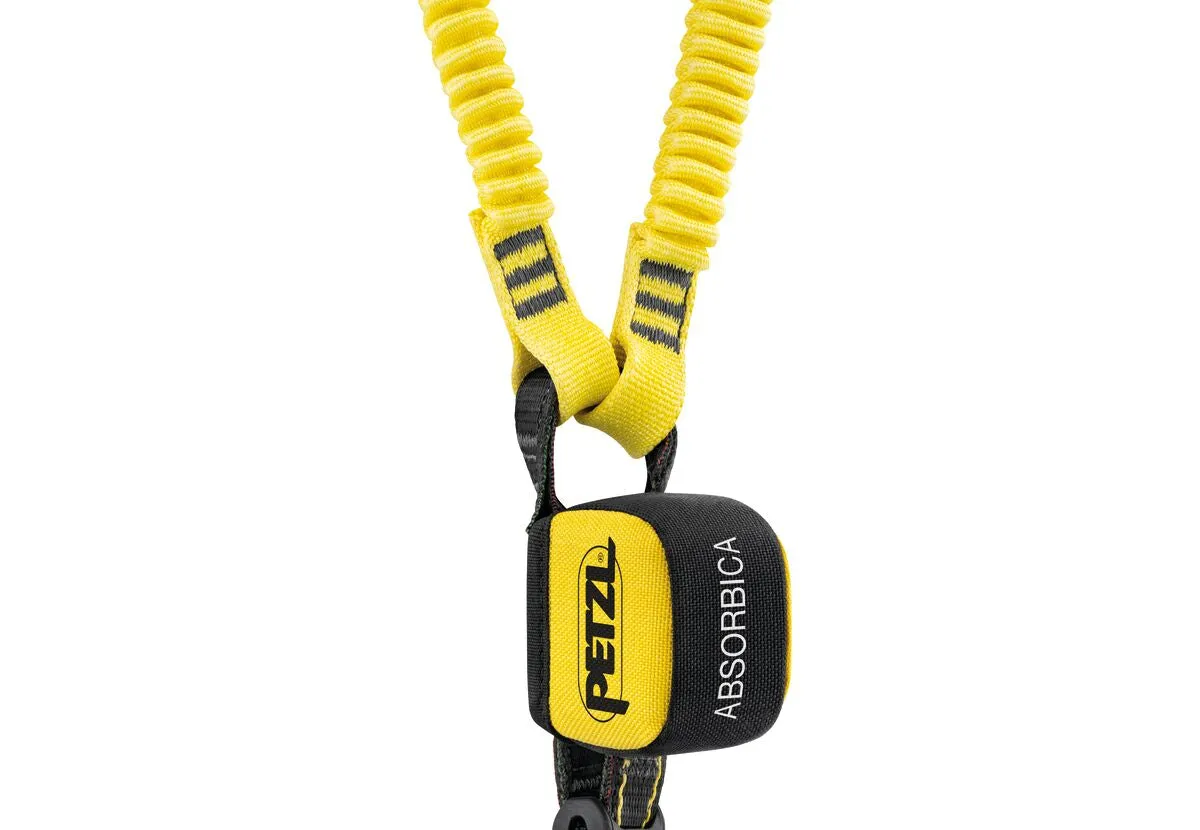

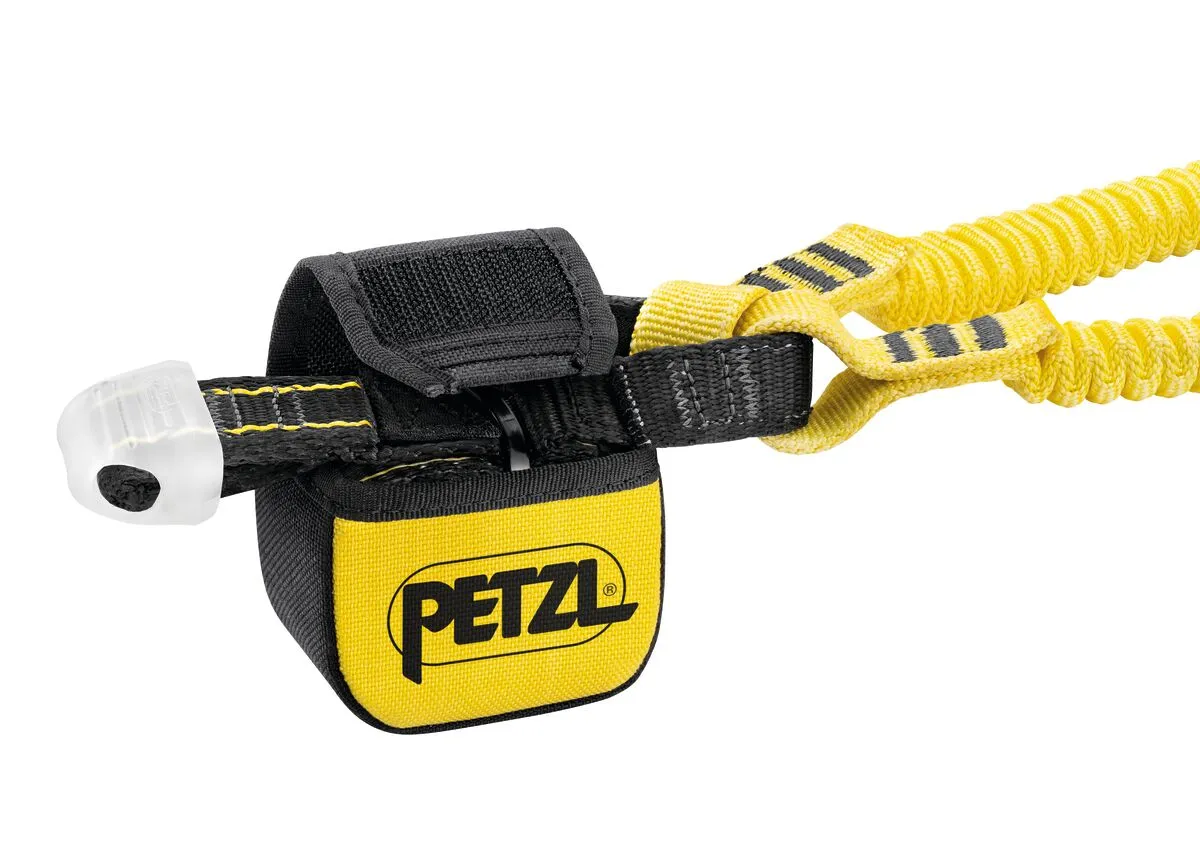

- Durable fabric pouch with a simple opening system protects the energy absorber from abrasion or contaminants while allowing for regular inspection of the absorber
- Two options for installation on the harness, depending on use:
- Frequent connection/disconnection: using either a carabiner held in correct position by the STRING positioning accessory (included with the lanyard), or a MICRO SWIVEL to avoid tangling
- Semi-permanent connection: using either a RING OPEN gated ring whose circular shape allows optimal positioning, or a SWIVEL OPEN to avoid tangling
(1) Under the CSA Z259.11-17 standard, the user must weigh between 75 and 140 kg.
Specifications
- Certification(s): - CE EN 355 (meets the requirements of the RFU PPE-R/11.074) - ANSI Z359.13, 12 ft. FF - CSA Z259.11-17 - Compliant with the Japanese standard for fall protection - GB/T 24538: type II Certifications depend on the connectors that are used. More information in the Instructions for Use.
- Maximum authorized length with connectors: - 200 cm under the CE EN 355, GB/T 24538: type II standards and the Japanese standard for fall protection - 183 cm (6 feet) under the ANSI Z359.13 and CSA Z259.11-17 standards
- Material(s): Polyester, high-modulus polyethylene, aluminum
References
| References | L015AB00 |
|---|---|
| Length without connectors | 153 cm |
| x | 200 cm |
| x | 183 cm |
| Weight | 400 g |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Price | $169.95 |
